LNG墙体施工方案.doc

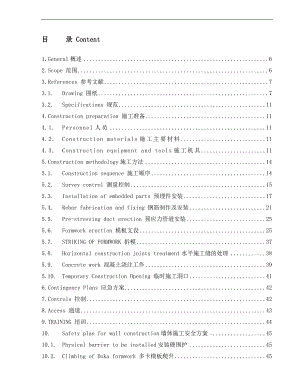

目 录 Content 1.General概述62.Scope 范围63.References 参考文献73.1.Drawing 图纸73.2.Specifications 规范114.Construction preparation 施工准备114.1.Personnel人员114.2.Construction materials施工主要材料114.3.Construction equipment and tools施工机具115.Construction methodology施工方法145.1.Construction sequence 施工顺序145.2.Survey control 测量控制155.3.Installation of embedded parts 预埋件安装175.4.Rebar fabrication and fixing 钢筋制作及安装215.5.Pre-stressing duct erection 预应力管道安装255.6.Formwork erection 模板支设255.7.STRIKING OF FORMWORK 拆模375.8.Horizontal construction joints treatment水平施工缝的处理385.9.Concrete work 混凝土浇注工作395.10.Temporary Construction Opening 临时施工洞口416.Contingency Plans 应急方案427.Controls 控制428.Access 通道439.TRAINING 培训4410.Safety plan for wall construction墙体施工安全方案4510.1.Physical barrier to be installed安装硬围护4510.2.Climbing of Doka formwork 多卡模板爬升4510.3.Fall protection 防坠落保护4510.4.Access and emergency access 通道和紧急通道4610.5.Electrical safety measure 用电安全措施4610.6.Bad weather plan 坏天气计划4611.Appendix 附件471. General概述This method statement is established to define construction method for the concrete wall of FJLNG phrase 1 Additional 3# and 4# Tanks project. 此方案适用于福建LNG一期新增3#和4#储罐工程混凝土墙体施工方案。2. Scope 范围Variations of sequence or method may evolve as the work progresses, which will maximize efficiency and use of available equipment and resources. A revised Method statement will be issued for variations in work practice. 施工顺序或方法会随工程进展而改动，以便最大化的提高资源使用效率。The tank wall is circular on plan, tank height of 50054mm, 1000mm thick tapering down to 550mm thick at a height of 6750mm. The inner radius of wall is 41000mm, the outer radius is 41550mm, and the thickness of standard wall is 550mm. The concrete C50 will be used for the wall, reinforced with high yield steel reinforcement on the faces of the wall and cryogenic reinforcement just be used on the inner face of lift 2. 罐体墙体为圆形, 罐高50054mm, 在高度6750mm范围内，罐厚从1000mm渐变到550mm. 墙体内径为41000mm,外径为41550mm,标准墙体厚度为550mm。墙体使用C50混凝土，墙体钢筋高屈服钢筋，第二层墙体内侧使用低温钢筋。Post Tensioning is applied to horizontal and vertical pre-stressing ducts built into the walls. 预应力适用于墙体的水平和竖直预应力管道。The description of tendon prestressing and duct grouting will be addressed in separated method statement. 预应力和孔道灌浆的描述参见单独的施工方案。During construction of the wall, welding joints and deformation of inserts control shall be performed by the mechanical subcontractor in accordance with the relevant specification, other work shall be carried out by civil contractor. The mechanical subcontractor shall use the access and platform set by civil subcontractor for welding of inserts. 在罐筒体施工过程中，预埋件焊接连接和变形控制措施工作由机械分包商按照相关规范执行，其余相关工作均由土建分包商完成。机械分包商进入筒体执行预埋件焊接时，可利用土建分包商设置的通道和操作平台。Construction will be 11 lifts of the following heights: 施工每层高度：Lift NoHeight (mm)Concrete Dosage(m³)1337579023375621338005874380058753800587638005877380058783800587938005871037755841111-1227553411-211004373. References 参考文献3.1. Drawing 图纸General Arrangement 总体安排 DD-DWG-TS-ST-025101Tank TS-T-02-03 Orientation 3#罐定位图DD-DWG-TS-ST-025102-01Tank TS-T-02-04 Orientation 4#罐定位图DD-DWG-TS-ST-025102-02Outer Paste on Liner 衬里的外部粘贴材料DD-DWG-TS-ST-025122Outer Liner Embed Details 外罐衬里预埋件详图 DD-DWG-TS-ST-025123-01Outer Liner Embed Details at TCO 临时洞口外罐衬里预埋件详图 DD-DWG-TS-ST-025123-02Outer Liner Embed Details 外罐衬里预埋件详图 DD-DWG-TS-ST-025123-033" Outer Bottom Insulation Purge N13 3"外罐底隔热层排气管N13DD-DWG-TS-ST-025192Outer Liner Embed Details 外罐预埋件详图DD-DWG-TS-ST-0251392" Dia Pres. Equalization - N14A/B & N20A/B 2"稳压管N14A/B & N20A/BDD-DWG-TS-ST-025194Temporary Outer Line Rain Gutter 临时外排水管DD-DWG-TS-ST-02ER5Compression Bar Anchor抗压钢筋锚固件DD-DWG-TS-ST-025158Embedment Plates for Escape Ladder逃生梯预埋件DD-DWG-TS-ST-025270Embedment Plates for Escape Ladder逃生梯预埋件DD-DWG-TS-ST-025271Embedment Plates for Main Stairway 主要通道预埋件DD-DWG-TS-ST-025272Embedment Plates for Main Stairway 主要通道预埋件DD-DWG-TS-ST-025273Embedment Plates for Main Pipe Rack 主管支架预埋件DD-DWG-TS-ST-025274-01Embedment Plates for Main Pipe Rack 主管支架预埋件DD-DWG-TS-ST-025274-02Embedment Plates for Firewater Piping 消防管道预埋板DD-DWG-TS-ST-025275Embed Plates for Circumferential Handrail 环形栏杆预埋件图纸 DD-DWG-TS-ST-025277Embed plates for roof walkway 穹顶走道预埋件 DD-DWG-TS-ST-025280Roof embed dimensions 穹顶预埋件尺寸 DD-DWG-TS-ST-025284Roof embed dimensions 穹顶预埋件尺寸 DD-DWG-TS-ST-025285Circumferential handrail 环形栏杆 DD-DWG-TS-ST-025321Concrete Tank Elevation 混凝土罐体立面图DD-DWG-TS-ST-025400Reinforcing Steel Bend Details 钢筋弯曲详图 DD-DWG-TS-ST-025411Concrete Wall Reinforcement 混凝土墙体钢筋DD-DWG-TS-ST-025415Starter Bar Arrangement Buttress 扶壁柱处插筋布置图DD-DWG-TS-ST-025416Concret
